If you're looking for a more advanced security system than traditional security alarms and CCTVs, it's time to consider CO-Z's automatic swing gate opener kit as a crucial addition to your security measures.
Working with gates up to 1300 pounds and 20 feet in length, this automatic gate opener kit for swing gates is a must have for your property. Once opened, the gates will automatically close behind you after a custom set time, ranging from 0 to 90 seconds. The infrared sensors can detect obstacles in the gates' path and automatically trigger your gates to stop or reverse their movement. Compatible with up to 32 remotes, HomeLink, Bluetooth, and Wi-Fi controls (additional setup required), this electric gate opening system is perfect for meeting the needs of larger families or smaller businesses and communities.
What are you waiting for? You are only a driveway gate opener away from improved property value and a safer, more convenient tech-empowered life!

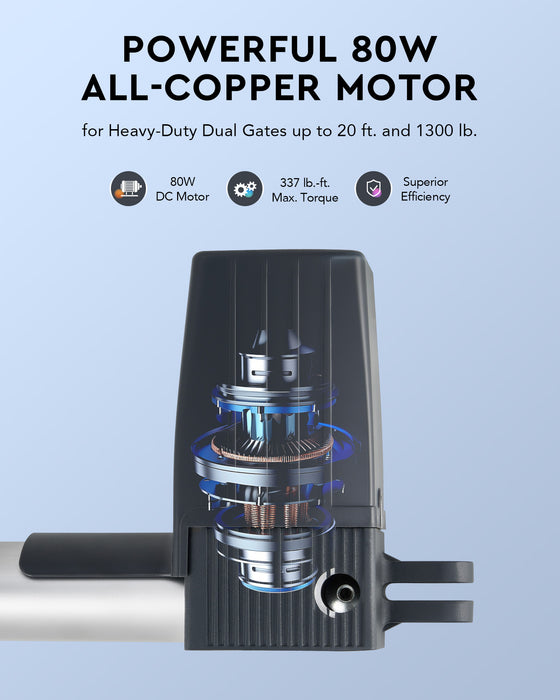

Open Dual Gates with Ease: With its energy-efficient 80W motors, this automatic swing gate opener kit from CO-Z smoothly opens driveway gates, villa gates, garage gates, or farm gates up to 1300 lb and 20 ft at 1 inch per second.
Customizable Closing Times: Tailor your gate operation with precision using our swing gate openers. Enjoy full control by setting personalized closing times of 15, 30, 60, or 90 seconds once the gates are open.

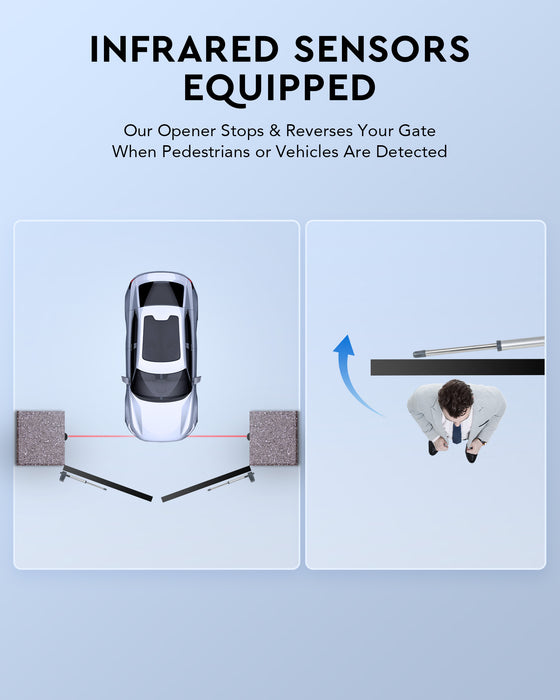

Infrared Sensors Equipped: This auto gate opener kit with remote responds by stopping and reversing gates if any obstacle is detected by its integrated infrared sensors. For added convenience, it features a pedestrian mode for efficient partial gate openings.

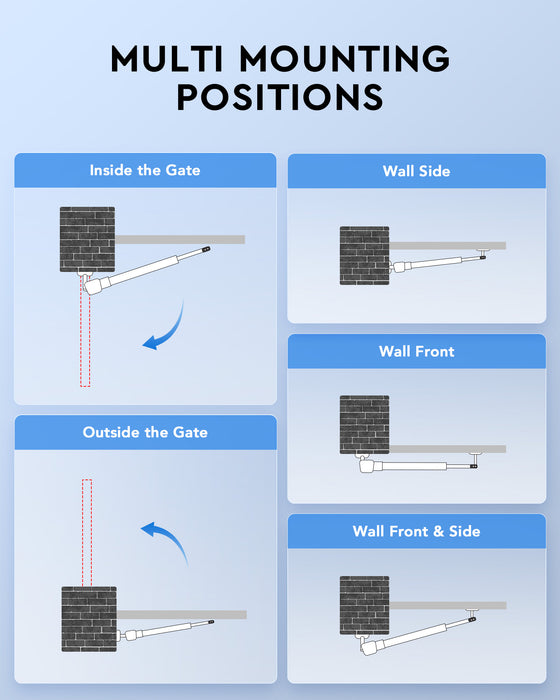

Multi Gate Control & Mounting Options: These electric gate openers come with 2 remotes but support up to 32, along with HomeLink, Bluetooth, and Wi-Fi functionality (interfaces reserved) for ease of use. They securely mount inside or outside your gate or at various sides of the gate column.
Dependable Safety: This electric gate openers with remote complete kit automatically locks your gates when they’re closed to prevent unauthorized access. The included manual release keys serve as a reliable backup in case of a power outage.
Specifications
Material: Copper, Aluminum Alloy, Steel, Plastic
Color: Gray

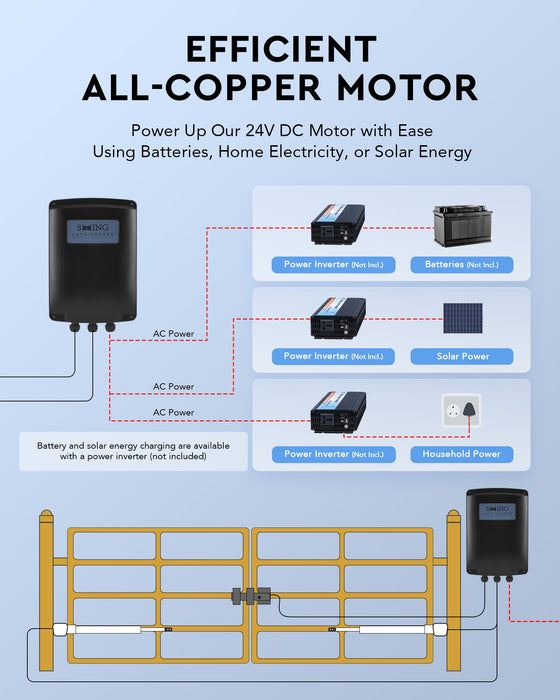

Rated Power: 80W
Max. Single-Leaf Gate Weight: 650 lb. (300 kg)
Gate Speed: 1 ips (2.6 cm/s)
Max. Single-Leaf Gate Length: 10 ft. (3 m)
Max. Noise: 58 dB
Gate Close Delay: 0/15/30/60/90 sec.
Max. Torque: 337.5 lbf (1500N) ea.
Operating Temp. Range: -4 to 158°F (-20 to 70°C)
Weatherproof Rating: IP44
Max. Remotes: 32
Remote Frequency: 433.92 MHz
Weight: 37.7 lb. (17.1 kg)

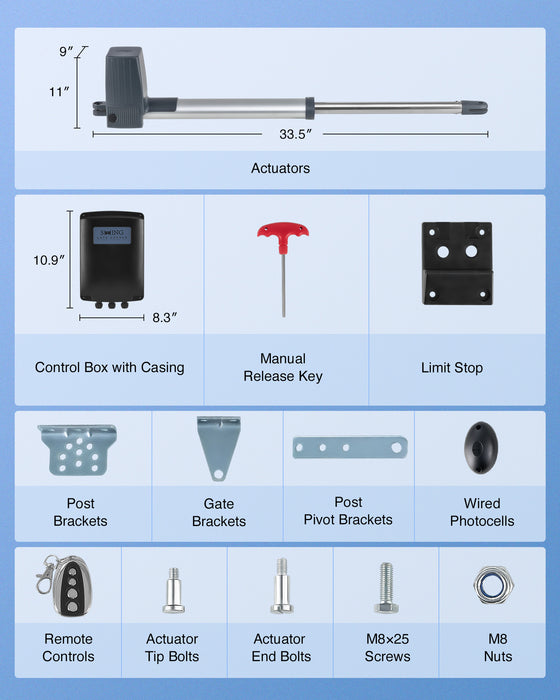

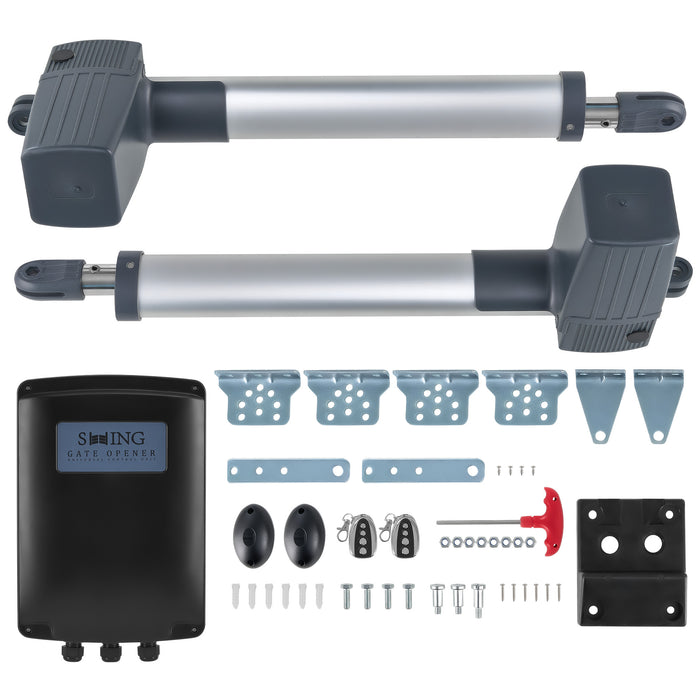

Package List
2x Actuators
2x Manual Release Keys
2x Remote Controls
1x Control Box with Casing
4x Post Brackets
2x Gate Brackets
2x Post Pivot Brackets
2x Actuator Tip Bolts
2x Actuator End Bolts
4x M8x25 Screws
8x M8 Nuts
1x Limit Stop
1x Wired Photocell Pair
1x User Manual
